Home  >  Motors  >  HVAC  >  Draft Inducer  > DAIKIN 80% 0131G00007

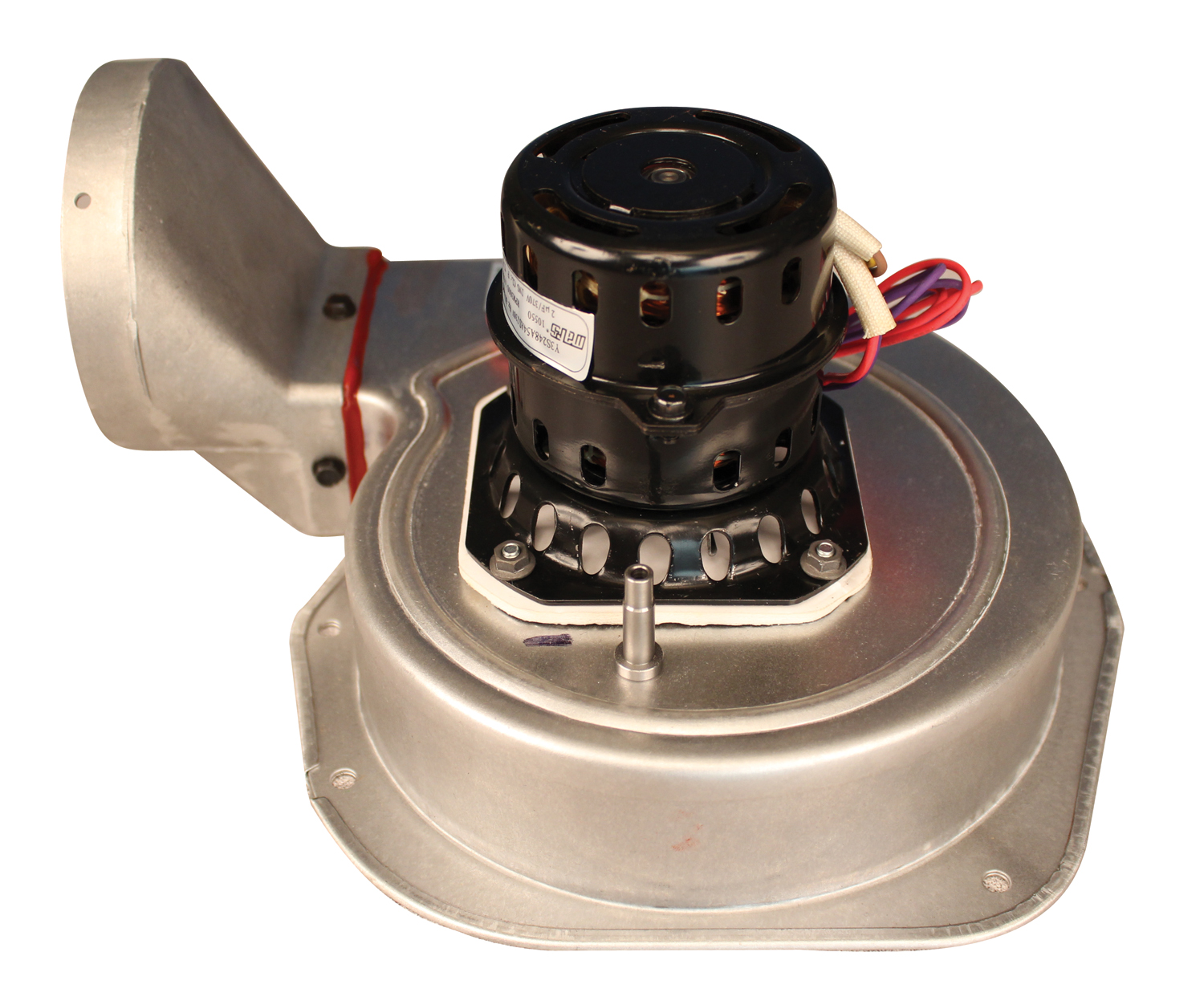

DAIKIN 80% 0131G00007

Motor Type PSC Enclosure Open HP (Max.) 1/50 Voltage 230 Speeds 1 Hz 60 Rotation CCW RPM Range 3000 NEMA Frame Size 2.6"/65mm Phase Single Standards CUL FLA 0.24 Bearing Ball Thermal Protection BR-A1D150 Ambient Deg C 60 Ins. Class F Shaft Dia. (in.) 1/3 Capacitor Included Yes Shaft Length (in.) 3.85 Capacitor Rating 2/370V
Item #: 10550
DAIKIN 80% 0131G00

MARS Draft Inducer Blowers

  • Designed & mfg.'s for exact drop in replacement
  • Goodman 0131G00007
  • 80+ Furnace
  • Capacitor Included: 2 MFD 370V
  • Single Phase
  • Thermal protected, air over
    •

    Motors

    Motor Type
    PSC
    Enclosure
    Open
    HP (Max.)
    1/50
    Voltage
    230
    Speeds
    1
    Hz
    60
    Rotation
    CCW
    RPM Range
    3000
    NEMA Frame Size
    2.6"/65mm
    Phase
    Single
    Standards
    CUL
    FLA
    0.24
    Bearing
    Ball
    Thermal Protection
    BR-A1D150
    Ambient Deg C
    60
    Ins. Class
    F
    Shaft Dia. (in.)
    1/3
    Capacitor Included
    Yes
    Shaft Length (in.)
    3.85
    Capacitor Rating
    2/370V
    Brand
    MARS
    Pack Qty
    1
    Case Qty
    1
    Pallet Qty
    64
    Length
    12.40 in.
    Width
    10.70 in.
    Height
    10.90 in.
    Weight
    5.0500 lbs
    Harmonized Tariff Code
    8501104020
    UPC
    685744105503
    Country of Origin Code
    CN
    Country of Origin Name
    China
    MFG NameMFG #
    Goodman0131G00007

    Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
